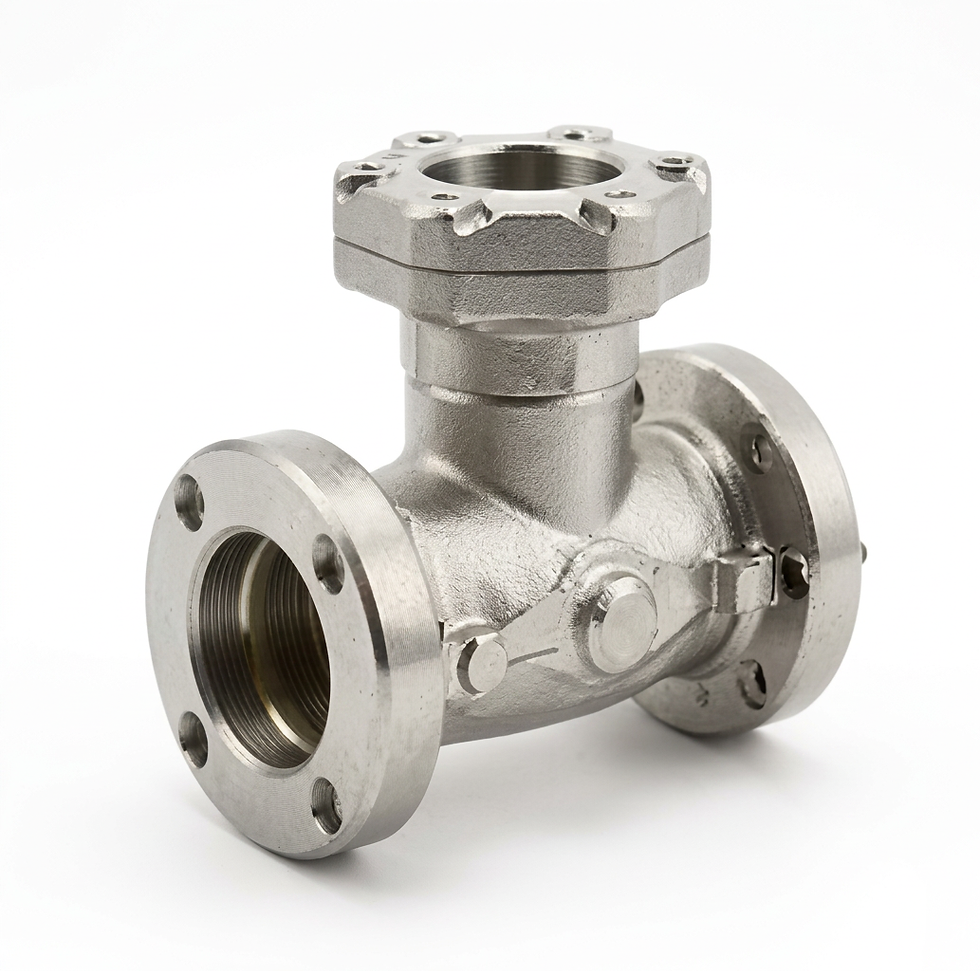

RV-500 High-Capacity Valve
Engineered for high-voltage transformer thermal management, the RV-500 Flanged Radiator Valve offers precision flow regulation and absolute leak protection, ensuring peak cooling efficiency under extreme load conditions.
Technical Specifications
Materials
• Galvanized GJS-500-7 Ductile Iron Housing
• Grade 316L Stainless Steel Internal Trim
Pressure Rating
• PN20 Nominal Working Pressure
• 30 Bar Proof Hydrostatic Test Pressure
Temperature Range
• Low Range: -45°C Cryogenic Resistance
• High Range: +170°C Continuous Oil Temp
Connection In
• ANSI B16.5 Heavy-Duty Flange
• 4-8 Bolt Pattern Compatibility
Seal System
• PTFE Reinforced Virgin Teflon Gaskets
• High-Grade Hydrogenated Nitrile O-Rings
Key Benefits
Precision Flanging
Flanged bolt-on geometry provides a vibration-proof seal, mitigating fluid loss in rugged utility environments.
Industrial Resilience
Cast ductile iron provides superior tensile strength to withstand axial stress and aggressive external corrosion.
Lockable Safety Yoke
Integrated mechanical locking stops ensure OSHA compliance during maintenance and prevent accidental actuation.
Optimized Fluid Path
High-efficiency internal geometry minimizes pressure drop across the radiator for superior heat dissipation.
